Fire Safe packing set 9650/FS

Fire Safe packing set 9650/FS

Fire Safe packing set 9650/FS

Features

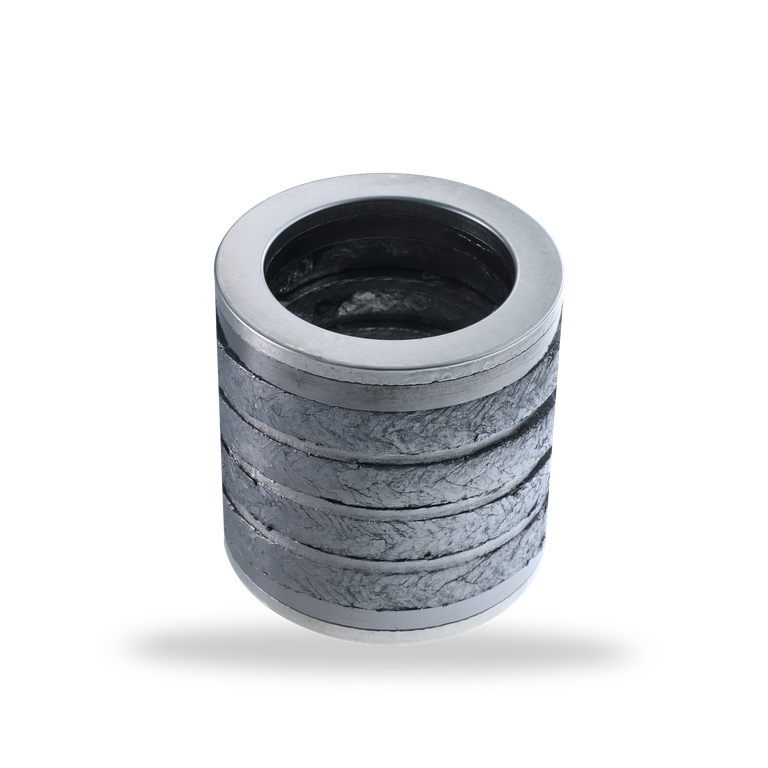

The fire-safe packing set 9650/FS is an extremely high performance set made from graphite products and stainless steel in different combinations. It is particularly for suitable for harsh conditions. It consists of the following components:
  • R901/B7K (with stainless steel cap)
  • 6050/KIN (packing)
  • 9591 (gasket 2 mm)
  • 6050/KIN (packing)
  • 9591 (gasket 2 mm)
  • 6050/KIN (packing)
  • 9591 (gasket 2 mm)
  • 6050/KIN (packing)
  • R901/B7K (with stainless steel cap)

Advantages

  • Particularly suitable for harsh conditions
  • High temperature stability

Operating range

Valves
Pressure: p = max. 260 bar
Sliding velocity: vg = 2 m/s

Temperature
  • Continuous operation, constant:
    tmax = +550 °C
  • Steam, constant:
    tmax = +550 °C
  • transient peak temperature:
    t = +600 °C
Chemical resistance: pH = 1 … 14
Resistant to almost all organic and inorganic acids, alkalis, oils and solvents.

Standards and approvals

  • ISO 10497
  • BS 6755 Pt. 2: 1987

Variants

R901/B7K (with stainless steel cap)
6050/KIN (packing)
9591 (gasket 2 mm)
6050/KIN (packing)
9591 (gasket 2 mm)
6050/KIN (packing)
9591 (gasket 2 mm)
6050/KIN (packing)
R901/B7K (with stainless steel cap)

Notes

Maximum temperature and maximum pressure must not be applied at the same time.

Forms of supply

  • Custom-made packing sets
  • Made to order
