MD291

Request product

MD291

MD291
Request product

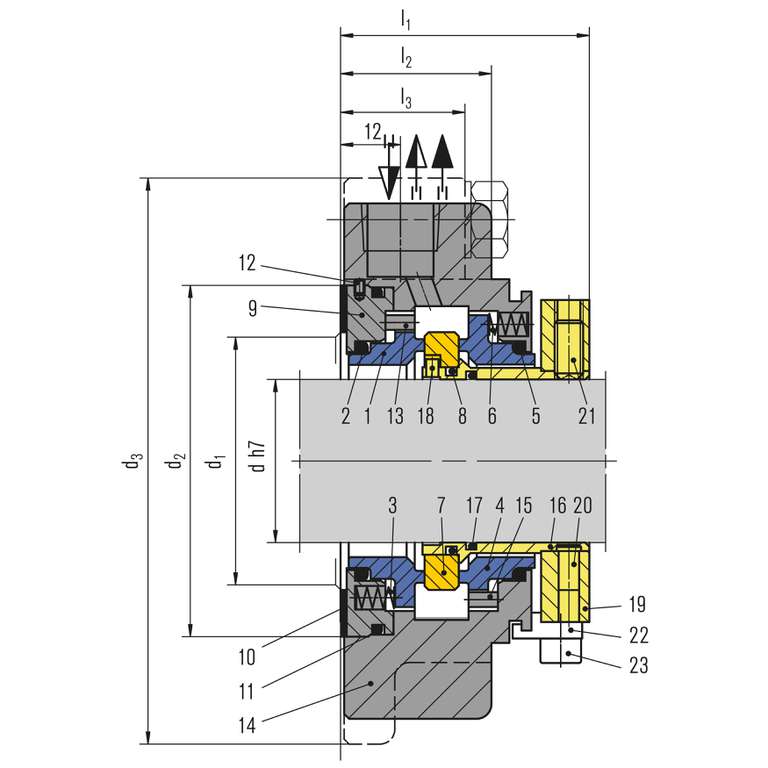

Item Description
1, 4 Seal face
2, 5, 8, 11, 17 O-Ring
3, 6 Spring
7 Seat
9 Collar
10 Gasket
12, 21 Set screw
13, 15, 18, 20 Pin
14 Seal cover
16 Shaft sleeve
19 Drive collar
22 Assembly fixture
23 HSH cap screw

MD291

Features

  • Cartridge design
  • Balanced
  • Ultra compact design
  • Double seal
  • Independent of direction of rotation
  • Inboard seal can withstand both forward and back pressures
  • Stationary, inside mounted type
  • Springs do not contact the liquid

Advantages

  • Equipped with flushing, quenching, and drainports as standard
  • The cooling system where the water is directly injected onto the seal faces provides the highest cooling efficiency

Operating range

Pressure: p = vacuum … 10 bar (145 PSI)
Temperature:
t = -20 °C … 160 °C (-4 °F … 320 °F) (oil),
0 °C … 60 °C (32 °F … 140 °F) (water)
Sliding velocity: vg = 20 m/s (66 ft/s)
Viscosity: … 1 Pa·s
Solids content: … 10 %

Materials

Seal face (inboard side): Silicon carbide (Q1)
Seal face (atmosphere side): High density carbon graphite
Seat: Silicon carbide (Q1)
Metal parts: CrNiMo steel (G)
Secondary seals: FKM (V)
